Digital compactability testing machine for green sand mold
NC-CBT-V2
- Compactability measurement
- Compressive strength measurement
- Shear strength measurement
- Making a sample test piece reading
- TJFS-107 Green sand compactability test method Standard compliant product
Usage example : Green sand mold

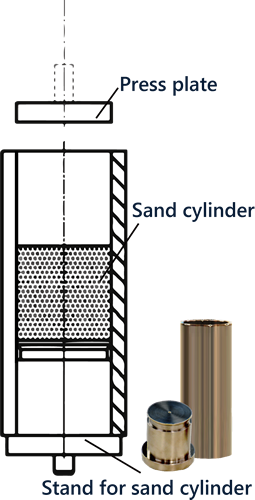

Compactability (making a sample test piece)

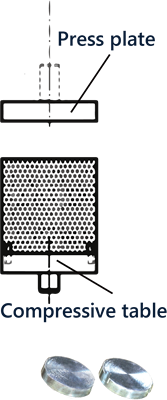

Compressive strength

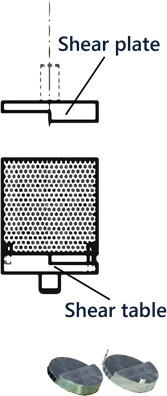

Shear strength
Usage example : Shell *Option
Transverse rupture strength
Specification
| Name | Digital compactability testing machine for green sand mold |
|---|---|
| Model | NC-CBT-V2 |
| Power supply | AC100V |
| Pressing pressure | 2,000N (MAX) |
| Size | W400 × D230 × H810 mm |
| Weight | 38 kg |
| Sand type | Green sand mold |
| Mode | ・Compactability measurement ・Compressive strength measurement ・Shear strength measurement |
| Accessories | ・Sand cylinder...1 ・Stand for sand cylinder...1 ・Jig for measuring compressive strength...1 ・Jig for measuring shear strength...1 |
| option | ・Transverse rupture strength measurement ・IT supported module |
Sample processor
| Height | 380 mm |
|---|---|
| Floor area | 210 × 210 |
| Sieve diameter | 150 mm φ |
| Mesh size | 6 mesh |
Sold separately
 |
| Sieve(Upper) / Sample processor(Lower) |
