Digital sand strength testing machine for green sand mold
NKU-V2
- Measurement of compressive strength / shear strength of green sand
- IT supported module (option)reading
![](../../images/product/NKU/NKU-V2-03.png)
![](../../images/product/CB/2-03.png)
![](../../images/product/NKU/NKU-V2-01.png)

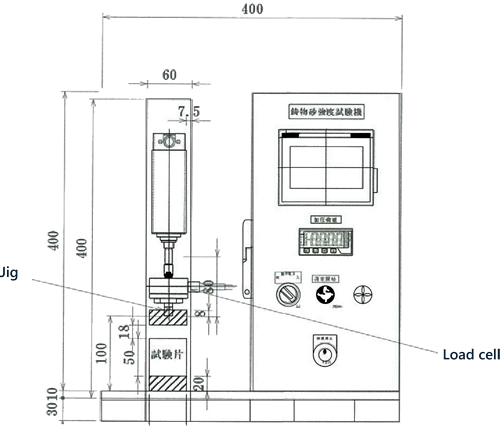

Overview
Usage example

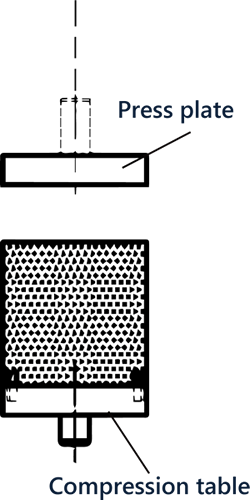

1) Compressive strength

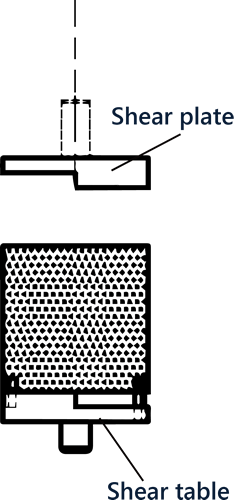

2) Shear strength
Specification [ Type : NKU-V2 ]
Name | Digital sand strength testing machine for green sand mold |
---|---|
Model | NKU-V2 |
Power supply | AC100V |
Pressing pressure | 2,000N (MAX) |
Size | W400 × D250 × H460 mm |
Weight | 25 kg |
Sample size | Dia. 50 × 50H |
Mode |
- Compressive strength measurement - Shear strength measurement |
Accessories |
Jig for measuring shear strength |
option | IT supported module |
