Temperature Logger System
(This product is not for sale)
- Omega Miniature Plug
- Battery charging (USB)
- The sampling is
an interval for a minimum
period of 1 sec - JIS-K type
![](../../images/product/tmlog/001_01.png)
![](../../images/product/tmlog/001_02.png)
![](../../images/product/tmlog/title.png)
introduction example

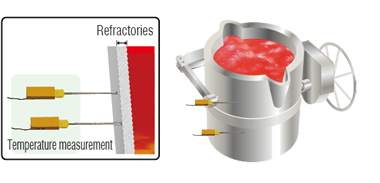

Prediction of melt temperature in ladles
The present melt temperature is estimated from the ladle surface temperature and the ladle refractory thickness.

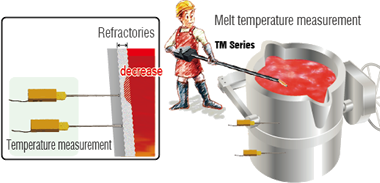

Monitoring of proper refractory repair timing
The present refractory thickness is estimated from the ladle surface temperature and the melt temperature, enabling monitoring of refractory thickness decrease.

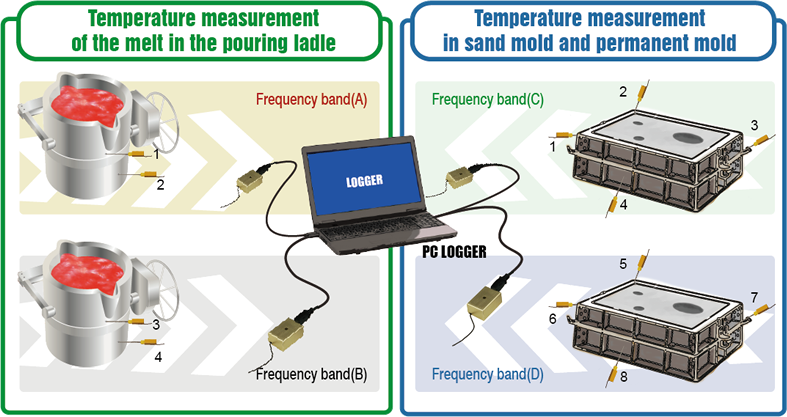

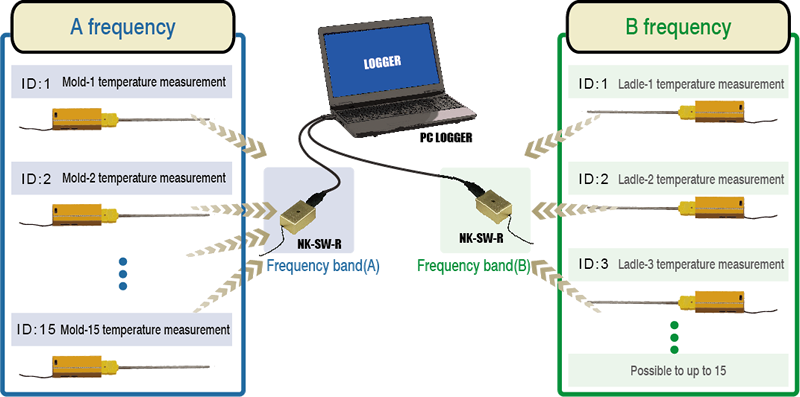

System example
Specification
Wireless thermometer
Type | NK-SW-T |
---|---|
Dimensions | H16× W60× D22 mm (Except thermocouple sensor unit) |
Weight | 32g |
Thermo sensor | JIS-K(The other type is negotiable.) |
Ambient temperature range | 0`80 |
Measurement range | 200`1350 |
Radio frequency | Specific small power 920MHz; CH1`15(Factory setting) |
Measurement interval* | Minimum: 1 sec. |
Battery run time | Measurement interval 1 sec. : 1 day |
Power source | Battery (USB charging ) |
communication range* |
|
Accessories |
|
Wireless receiver
Type | NK-SW-R |
---|---|
Dimensions | H16× W37× D23 mm |
Weight | 20g |
Radio frequency | Specific small power 920MHz; CH1`15(Factory setting) |
Interface | USB connection |
Accessories | USB cable |
Consumables (sold separately)
Omega Miniature PlugFCompatible with JIS-K
