Portable simple mold hardness measurement
Hardness Tester for Self-Hardening Mold /
NK-009
- Density of self-hardened mold can be adjusted from the test results.
- Contribution to quality improvement.
- A limiter is provided for setting an allowance range of hardness.
- Peak pointer (red pointer) is provided to indicate the maximum measurement
Feature
Mold hardness measurement after molding
Selection of molding conditions (squeeze pressure and number of jolts).
![](../../images/product/tmp/NK009-02-03.png)
Batteries
Hardness test method
- Use a test mold with a flat test surface accompanied with an opposing surface which is also flat and parallel to the test surface.
- Hold the tester securely by hand and lower it vertically at a constant speed pressing it on the mold surface. The maximum value is read immediately after the contact. Measurement made askew or upward or on a vertical surface may lead to erroneous results.
correct |

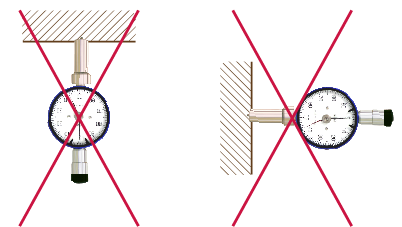

Incorrect |
![](../../images/product/CB/nc-cbt-v2-012.png)
|
![](../../images/product/CB/nc-cbt-v2-013.png)
|
conversion table : Load
Indicated value |
N |
gf |
kgf |
0 |
0.00 |
0 |
0.000 |
25 |
11.11 |
1,133 |
1.133 |
50 |
22.22 |
2,266 |
2.266 |
75 |
33.33 |
3,400 |
3.400 |
100 |
44.45 |
4,533 |
4.533 |
* The values are approximate.
Calibration
Calibration at custody (Recommended one a year)
Calibration certificate, Traceability system diagram, inspection report, etc.
Specification [ Type : NK-009 ]
Target of measurement |
Furan, phenol, CO2, shell mold cores, etc. |
Type |
Peak pointer type |
Load value
|
0 - 44.450 N ( 0 - 4533 gf ) |
Base shape
|
φ12 mm |
Indentor shape
|
φ2.38 mm |
Measuring direction
|
Downward ( Others directions may cause a malfunction) |
Measuring range
|
0〜100 scale ( 0 - 44.450 N / 0 - 4533 gf ) |
Limiter
|
±5 scale |
Size |
H123 × W55 × D24 mm |
Weight
|
160 g |
Storage place |
Dark place |
* Read the usage carefully and use the device properly
