Wireless data reception unit
TM-RW-M

TM-RW-M outputs data of the temperature
that a wireless thermometer made
in us measured it.

Diverse models

Standard type (ID, Indication of the temperature).

The output by the serial communication(RS232C).

For the Windows OS(An exclusive program is with it).

The output by the 4-20mA.

Measure the received temperature.
Operates the Lamp and Buzzer according to the specified range.

Print the time and ID and temperature.

At time, I store ID, temperature as CSV (TXT) file.

Output temperature data (1000~1700 ℃).

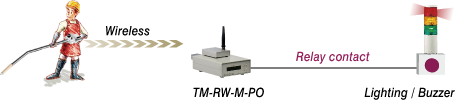

Measure the received temperature. Operates the Lamp and Buzzer according to the specified range.

The tolerance level: Green lighting / Buzzer 1s
The tolerance level outside: Red lighting / Buzzer 20s

周波数 (MHz)	Ch	WL	周波数 (MHz)	Ch	WL	周波数 (MHz)	Ch	WL	周波数 (MHz)	Ch	WL
429.25	1	1	429.375	11		429.5	21	7	429.625	31
429.2625	2		429.3875	12		429.5125	22		429.6375	32
429.275	3		429.4	13	6	429.525	23		429.65	33	4
429.2875	4		429.4125	14		429.5375	24		429.6625	34
429.3	5	5	429.425	15		429.55	25		429.675	35
429.3125	6		429.4375	16		429.5625	26		429.6875	36
429.325	7		429.45	17	3	429.575	27		429.7	37	8
429.3375	8		429.4625	18		429.5875	28		429.7125	38
429.35	9	2	429.475	19		429.6	29		429.725	39
429.3625	10		429.4875	20		429.6125	30		429.7375	40

WL: 1~4 / 5～8

Ch: 1~40　Switchable

Type	TM-RW^*1
Dimensions	Main body: W130 × H60 × D220 mm (Includes rear connector) Antenna part: W65 × H350 × D85 mm
Weight	About 0.6kg
Radio frequency	429MHz (CH: 1~40 / Body operation / Switchable)
Interface	RS232 Option: 4-20 mA, Relay contact (4 points)
Power source	AC100-240V
