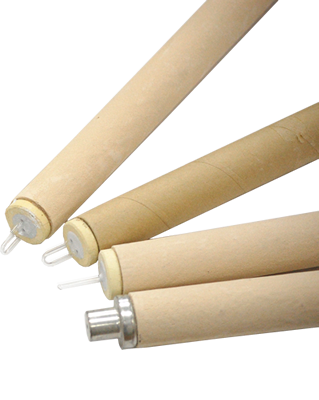

A consumable type thermocouple of high precision and high quality for molten metal temperature
CRYSTAL THERMO

Hi-precision,hi-quality expendable thermocouples
JIS-C1602 : 2015

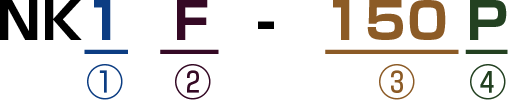

Viewpoint of the product

$NK1H-150P$

① Type of Silica tube

No.	Drawing	Form	Length (mm)	Material	Recommended Plug	Type of Plug
1		U	14	Ceramic		Stepped
2		U	25	Ceramic		Stepped
3		straight	30	Ceramic		Stepped
4		U	14	Ceramic		straight
5		U	14	Resin		Stepped ( Light thermo)
6		U	25	Ceramic		straight

② Type of Protection cap

No.	Drawing	Sensor part	Recommended use
N		None	Copper molten metal Aluminum molten metal Ladle
F		Iron	Electric furnace
A		Aluminum	Electric furnace

③ Length of Protection tuba

④ Length of Protection tuba : Φ30

No.	Protective tube	Material
P		Paper
H		Diatomaceous earth

Product list

Standard stock： Paper

Standard thermocouple (Protective tube : φ30)
Recommended lance length : 800-2,000 mm

NK1A-150P	NK1N-300P	NK1F- 500P	NK1F-1170P
NK1F-150P	NK1A-300P	NK2N- 500P
	NK1F-300P	NK4A- 500P
	NK2N-300P
	NK4N-300P
	NK4A-300P

Standard stock：Diatomaceous earth

Standard thermocouple (Protective tube : φ30)
Recommended lance length: 800-2,000 mm

NK1N-100H	NK1N-150H	NK1N-300H
NK1F-100H	NK1F-150H	NK1A-300H
NK2N-100H	NK2N-150H	NK1F-300H
		NK2N-300H

Please refer for other combinations
