Simplified Thermal Analysis
EZA
- Simplified CE meter of PC type
- Dedicated keyboard
[Option]
・Data communication (COM)
・Printing (dedicated thermal printer)

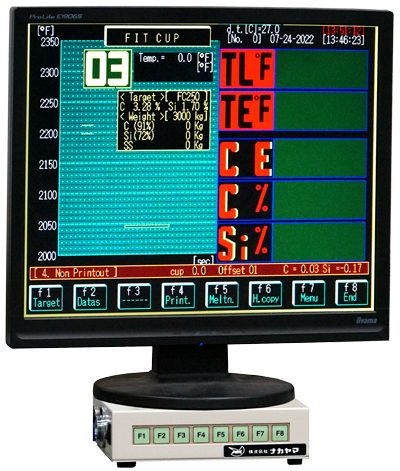

Configuration example
*The monitor
are not included
Specification
| Dimentions | W200 × D170 × H50 mm (Protrusions not included) |
|---|---|
| Weight | About 1.4 kg (body) |
| Measurement range | 100 − 2450 °F (JIS-K) |
| Method of operation | Dedicated keyboard (F1 − F8) |
| Accuracy/ measurement range |
・CE 2.30 − 4.80 ; ±0.05 ・C% 2.50 − 4.00 ; ±0.03 ・Si% 0.05 − 3.50 ; ±0.06 |
| Power supply | AC100 − 240V |
| Interface | COM(Dsub 9pin)×1, VGA×1, Temperature input(K)×1 |
| Accesories | AC adapter, Cup stand (CUP-ST) |
| Option | ・Data communication (COM) ・Printing (dedicated thermal printer) |
