ICT-compatible CE meter Casting Furnace Front AnalyzerQCR-D's

QCR-1000/2000 successor model

Standard function

・Measuring of CE, C%, Si%
・Recharge calculation
・Recording of saved data

Interface

・LAN, VGA, RS232
・Printer port
・10 inch monitor

Comparison

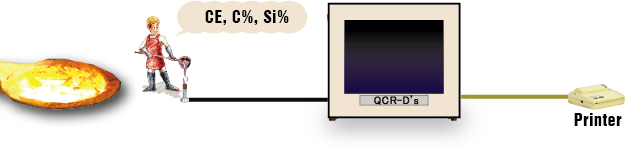

Case 1: Use in the same way as QCR-1000/2000

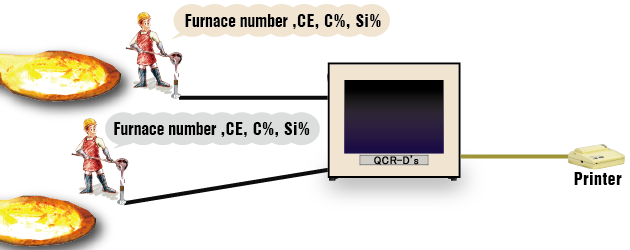

Case 2: Perform a thermal analysis of two furnaces

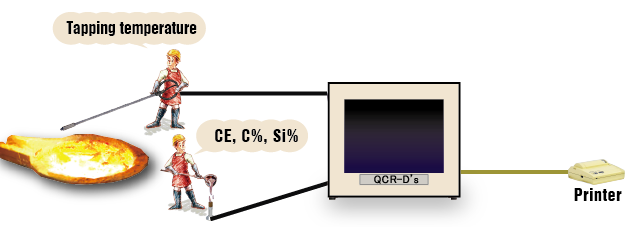

Case 3: Record and manage thermal analysis and measured temperatures

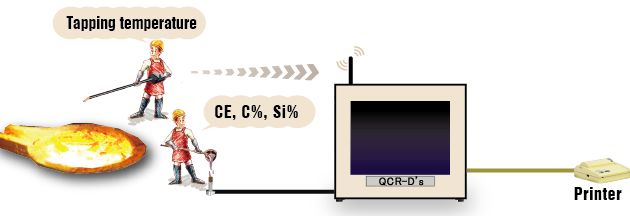

Case 4: Record and manage thermal analysis and temperature measured by wireless thermometer

Measurement details: CE, C%, Si%

Measurement details: CE, C%, Si% , Furnace number

Measurement details: CE, C%, Si% , Tapping temperature

Type	QCR-D's-OP2
Component equipment	Cup stand Immersion type wired molten metal thermometer (QCPH) Printer
Printer (Sold separately)	LPT：VP series COM：DPU-S445

Measurement details: CE, C%, Si% , Tapping temperature

Type	QCR-D's-OP3
Component equipment	Cup stand Immersion type wired molten metal thermometer(TMW series) Wireless Receiver(TM-RW-QD) Printer
Printer (Sold separately)	LPT：VP series

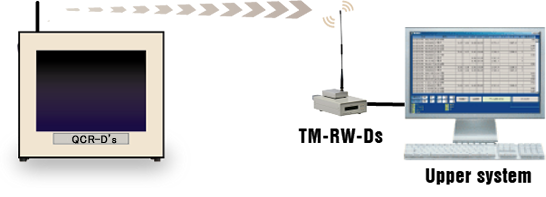

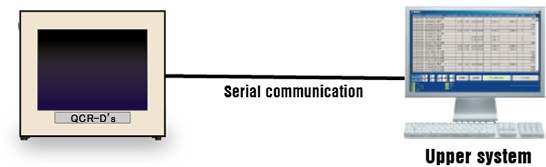

This device can transfer measurement data acquired in each configuration to the host system.

Outside dimensions	H260 × W290 × D120 mm
Monitor	10 inch
Weight	approx. 4 kg
Storage media	SD card (External storage mounted on the main unit)
Measurement range	100-2450°F (JIS-K)
Operation	Dedicated keyboard (F1～F8)
Measuring Accuracy	CE　2.30～4.80　 ±0.05 C%　2.50～4.00　 ±0.03 Si%　0.05～3.50 　±0.06
Accessories	・Cup (with 5m cable) ・USB conversion cable

Measuring (Either one)	・Immersion thermometer ・2-channel measurement (JIS-K×2)
External I/O	・Lamp output ・Buzzer output ・Material selection switch
ICT-compatible (Use TM-RW-QD)	・Sending and receiving data with other PCs ・Wireless thermometer data recording
