Melt Quality Control

for automatic polishing of test pieces and image analysis of shperoidal grashphite /
NAP-01

  • Body of the tester On-Floor Type (weight approx.400kg)
  • The last melt is poured in a shell mold to make a test piece and nodularity of spherical graphite is obtained within five to six minutes.

Thermal Analysis ( CE - meter )
QCR-2000

  • Obtain CE value, C%, and Si% from cooling curve.
  • Graphs of composition variation.
  • Nodularity rate of Ductile and Compacted Graphite Iron.
  • Initial charge calculation
  • recharge calculation, etc.
  • Data saving and reviewing possible. Data storage possible.
  • 12 inches monitor
  • Lightweight (5.5kg)
  • Thin type (H350 × W310 × D80 mm)

Thermal Analysis ( CE - meter )
QCR-1000

  • Obtain CE value, C%, and Si% from cooling curve.
  • Graphs of composition variation.
  • Nodularity rate of Ductile and Compacted Graphite Iron.
  • Initial charge calculation
  • recharge calculation, etc.
  • Data saving and reviewing possible. Data storage possible.
  • 7.5 inches monitor
  • Lightweight 3.0kg
  • Thin type (H270 × W230 × D80 mm)

Thermal Analysis ( CE - meter )

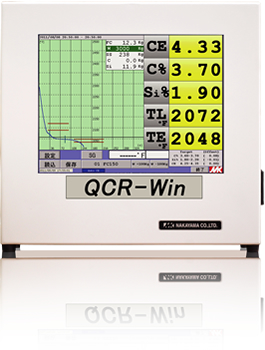

QCR Series Windows Edition / QCR-WIN

  • Obtain CE value, C%, and Si% from cooling curve.
  • Graphs of composition variation.
  • Nodularity rate of Ductile and Compacted Graphite Iron.
  • Initial charge calculation
  • Recharge calculation, etc.
  • Data saving and reviewing possible. Data storage possible.
  • Touch Panel
  • 15 inches monitor
  • Lightweight (11kg)
  • Thin type (H360 × W410 × D140 mm)

A new type instrument for nodularity determination
GR Series Windows Edition / SGR-WIN

  • Calibration curve is automatically corrected by inputting data.
  • Nodularity rate of Ductile and Compacted Graphite Iron.
  • Touch Panel
  • 15 inches monitor
  • Data saved for three years
  • Past record can be referred.

Nodularity ratio determined in 3 minutes after spheroidizing treatment
SGR-1000/SGR-2000

  • Nodularity rate of Ductile and Compacted Graphite Iron.
  • Data storing
  • Light weight
    3.0kg (SGR-1000)
    5.5kg (SGR-2000)
  • Thin body
    H270 × W230 × D80 mm (SGR-1000)
    H350 × W310 × D80 mm (SGR-2000)

Digtal Microstrcture Image Analyzer
SG-Analyzer

  • JIS standard is observed.
  • The two-buttons system makes mouse and keyboard unnecessary (for normal operation).
  • Quick work due to automatic image analysis.
  • Prior fixing of settings eliminates personal bias depending on operators.
  • Automatic report printing after measurement (if connected to a printer).
  • Simple operation by the two-button system, though keyboard is needed for lot control.
  • Applicable to process controlling on the production floor.
  • Run on Windows. Data can be transferred through USB port. Data is saved in a folder with the date for easy acquisition.
