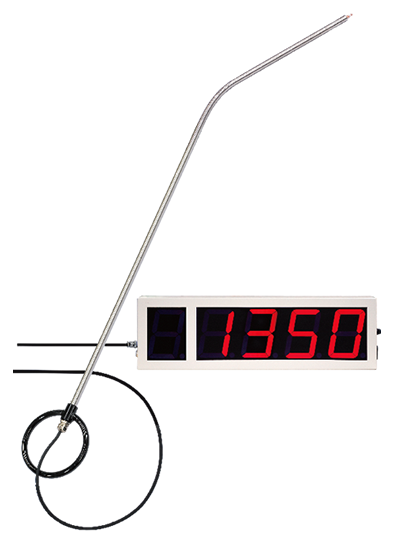

Molten metal thermometer with a large digital display
TM-PH

  • Auto peak hold
  • Peak signal buzzer
  • Simple and light display unit for desk setting
    or wall hanging
  • Display within 5 seconds after immersion

Feature

Adjustable pole length

Peak signal buzzer

  • Peak buzzer for longer consumable life and no personal bias
  • Maximum measurement recorded by auto peak hold function

Simple and light display unit for desk setting or wall hanging

  • Large red LED for display.
  • Thin and large display unit for easy reading.
  • Single power source of AC 100 V.

Option

  • Analog (4-20mA) output function
  • Temperature judgment function, judgment by lamp/buzzer

Option specifications

Data output function　／　TM-PH-AO

  • Analog (4-20mA) output of measurement data.
  • [Option] It is also possible to output only what you pressed the "Confirm button".

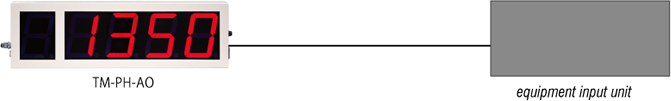

Configuration example

Temperature upper and lower limit alarm function　／　TM-PH-J

  • A lamp/buzzer notifies you when the measured temperature is within or outside a preset specified temperature range.
  • Setting range: Up to 4 points can be registered (can be changed using an external switch)
Operation example
●Within specified temperature range


Green lighting/buzzer 1 second

●Outside the specified temperature range


Red light/buzzer 20 seconds

Data wireless transfer function　／　TMW-PH

  • Transfer measurement data wirelessly.
  • Data transmission of device ID (1~8) and measured temperature using dedicated wireless.
  • Can be recorded and managed using TM-RW-M and a dedicated app.
  • Radio frequency WL (1~8) must be specified at time of shipment.

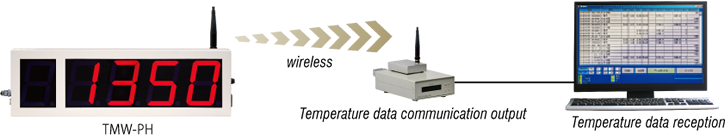

Configuration example


Radio frequency

frequency (MHz) Ch WL   frequency (MHz) Ch WL   frequency (MHz) Ch WL   frequency (MHz) Ch WL
429.25 1 1   429.375 11     429.5 21 7   429.625 31
429.2625 2     429.3875 12     429.5125 22     429.6375 32
429.275 3     429.4 13 6   429.525 23     429.65 33 4
429.2875 4     429.4125 14     429.5375 24     429.6625 34
429.3 5 5   429.425 15     429.55 25     429.675 35
429.3125 6     429.4375 16     429.5625 26     429.6875 36
429.325 7     429.45 17 3   429.575 27     429.7 37 8
429.3375 8     429.4625 18     429.5875 28     429.7125 38
429.35 9 2   429.475 19     429.6 29     429.725 39
429.3625 10     429.4875 20     429.6125 30     429.7375 40

Common specifications [ TMPH]

Temperature sensor (standard) Type-R thermocouple　（ JIS C 1602: 2015 )
Measurement range 50 ~ 1768℃*1
Resolution 1 deg.C
Auto peak hold function The maximum value during measurement is held fixed.
Warning ER-S for sensor open or over scale
Character Red LED 110 x 70 mm
Power source AC 100V ±10V
Dimension W500 × H150 × D70 mm (Without protrusion)
Weight
  • main unit : apprx. 3 kg
  • pole (2m) : apprx. 1.5 kg
* Observe the usage carefully read the notes on use , please use it correctly.
*1 Lower limit can be changed (setting parameters can be changed using a dedicated program)
