Molten metal thermometer for steel iron manufacture
TM-ST

  • Auto peak hold
  • Display within seconds after immersion
  • Blinking indication at the time of the
    measurement error
  • Even a beginner can treat it
  • Lightweight compact than TMPH
  • desk setting or wall hanging, Long life
  • Measurement misdetection

Feature

  • Single power source of AC 100-240V (AC adapter)
  • Connection plugs 3-pin metal connector

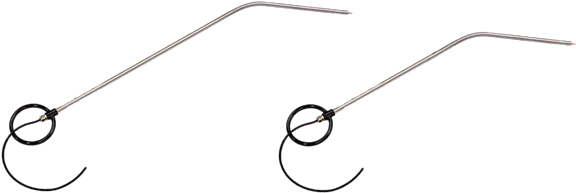

Adjustable pole length

Auto peak hold function

  • Maximum measurement recorded
  • Peak buzzer
  • The measurement without the individual difference is possible

Lightweight compact than TMPH(Character is the same size)

TMPH TMST

W500 × H150 × D70 (mm)
3kg
W390 × H150 × D75 (mm)
2kg

Thin and large display unit, and Easy reading

Consumables connection

Measurement complete

Blinking indication at the time of the measurement error

Consumables unconnected

Measurement errors


When measured terminated before the peak temperature.

Option

  • Data output function : TM-ST-DO
  • Wireless data output function : TMW-ST

Option specifications

Data output function　／　TM-ST-DO

  • Measurement data can be recorded and managed using a dedicated app via ommunication(RS232C)

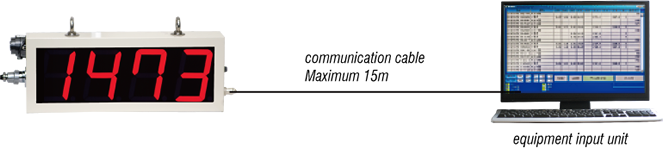

Configuration example

Data wireless transfer function　／　TMW-ST

  • Data transfer of measurement data using wireless
  • Data transmission of device ID (1, 2, 3, 4) and measured temperature using dedicated wireless
  • Recording and management possible using TM-RW-M and a dedicated app
  • Radio frequency WL (1, 2, 3, 4) must be specified at time of shipment

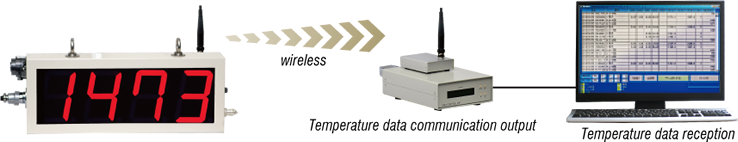

Configuration example

Radio frequency

frequency (MHz) Ch WL   frequency (MHz) Ch WL   frequency (MHz) Ch WL   frequency (MHz) Ch WL
429.25 1 1   429.375 11     429.5 21 7   429.625 31
429.2625 2     429.3875 12     429.5125 22     429.6375 32
429.275 3     429.4 13 6   429.525 23     429.65 33 4
429.2875 4     429.4125 14     429.5375 24     429.6625 34
429.3 5 5   429.425 15     429.55 25     429.675 35
429.3125 6     429.4375 16     429.5625 26     429.6875 36
429.325 7     429.45 17 3   429.575 27     429.7 37 8
429.3375 8     429.4625 18     429.5875 28     429.7125 38
429.35 9 2   429.475 19     429.6 29     429.725 39
429.3625 10     429.4875 20     429.6125 30     429.7375 40

Specification [ TMST (Program BG Ver.1.0.0) ]

Temperature sensor Type-R thermocouple　（ JIS C 1602: 2015 )
Measurement range 200 〜 1768 ℃ ／ 1000 〜 1768 ℃
Resolution
 1℃
Warning Normal / measurement errors / unconnected
Character Red LED single character : 100×70mm
Power source AC100-240V (AC adapter)
Dimension W390×H150×D75 (Without protrusion)
Weight 2kg
* Observe the usage carefully read the notes on use , please use it correctly .
