Battery powered wireless thermometer with memory function
TMW-ZERO

  • Automatic peak hold
  • Measurement time: 3~4 second
  • Automatic power off
  • Buzzer signal at after the measurement
  • 1,200 measurements by one charge

Feature

Handy type thermometer

Small and light handy type thermometer. Easy measurement of molten metal temperature.

Peak hold function

Auto peak hold with beep sound ensures displaying the max temperature.

Power off function

Automatic power-off function (1 minite).

Indicator

Indicator is large red LED.

Measurement time

Continuous 25 hour operation or up to 1200 measurements (in theory).

Thermocouple switching is possible

Thermocouple type: B, S, R, K (standard: R) .

Wireless

The specific small electricity

The specific small electricity that is a license-free

Line-of-sight distance

20m (There is a condition difference)

Batteries

Save measurement data

Easy r ecording of measurement up to 8,000 data.

Power supply

When the battery on the main unit is low, simply replace it with a charged one.

Exclusive battery Exclusive battery charger


Charge

Fast charge(1~1.5 h).

Battery refresh

Battery is refreshed by a charge residual quantity.

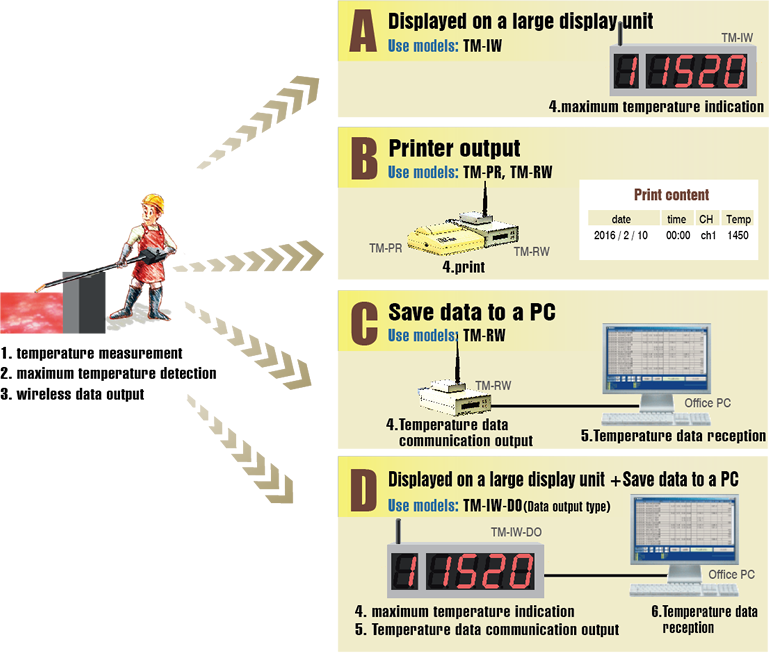

Data output / Data linkage

Transferred to computer

Data easily transferred to computer(Provided software).

Device

Wireless large display
TM-IW		 Printer
TM-PR		 Wireless receiver
TM-RW

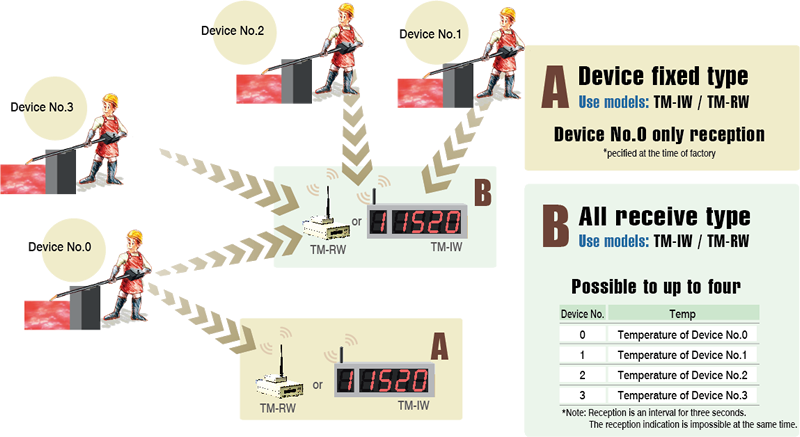

System example

Receive filter

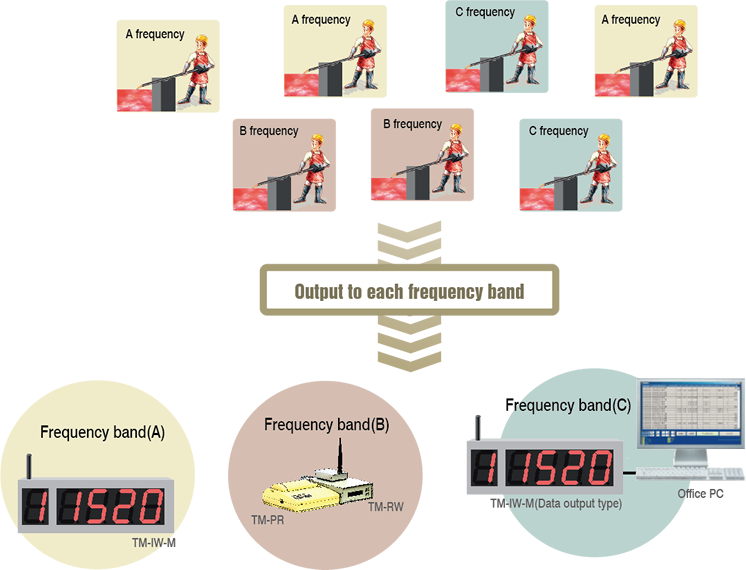

Multifrequency type

Multi-frequency type “-M”

Specification [ Type : TMW-ZERO*1 ]

Dimensions
  • Body: W80 × H35 × D130 mm
  • Charger: W130 × H50 × D175 mm
Weight
  • Body :About 1.2kg
  • Charger :About 1.3kg
Thermo sensor Type-R thermocouple@i JIS C 1602: 2015 )
Measurement range 50 ~ 1768Ž
Accuracy ±(0.3“ of rdg{1Ž)
Resolution 1Ž(1°‚e)
Reference contact point compensation ±1Ž(0`100Ž) / ±1°‚e(0`212°‚e)
Radio frequency Specific small power ( line-of-sight distance: 20m)
  • Standard: 429MHz(Fixed)
  • M-Type: 429.25, 429.35, 429.45, 429.65MHz (Select)
Indicator Red LED character size: 14.2 ×10 mm
  • sensor open or upper limit : Er-S
  • batteries are low : Er-P
Peak hold function Holds the maximum data of increasing temperature(Buzzer signal).
Power off function Switches off the power when increasing temperature is not
Batteries Nickel hydrogen cell
Recharging power source AC100 ~ 240V
Accessories
  • Battery : 2set
  • Charger: 1set
  • Capture software (CD): 1set

Display

Type TM-IW *1
Data output TM-IW-DO
Dimensions W500 × H150 × D70mm
Weight About 3kg
Reception frequency
 429MHz
character Red LED / character size: 110 × 70 mm
Power source AC100-240V

Printer

Type TM-PR *1
Dimensions W150 × H150 × D250 mm
Weight About 2kg
Printing method Serial dot thermal printer
Power source Dedicated adapter

Receiver

Type TM-RW *1
Dimensions
  • Body*2FW130 × H60 × D220 mm
  • Antennas*3FW65 × H350 × D85 mm
Weight –ρ0.6kg
Reception frequency 429MHz
Interface RS232
Power source AC100-240V
*1 Multi-frequency type “-M”
*2 Including rear connector
*3 Including Antennas
*4 Observe the usage carefully read the notes on use , please use it correctly .
